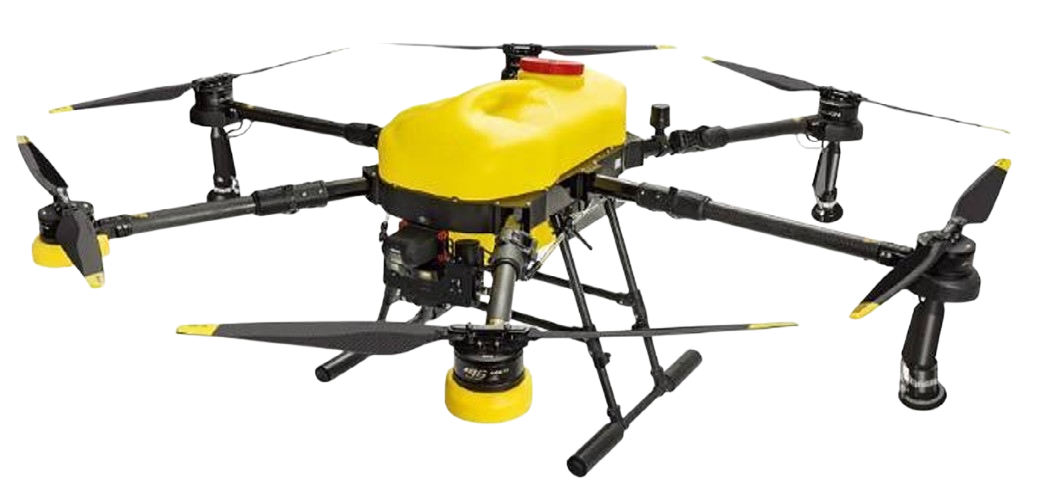

XA6-22 Drone

XA6-22

旗艦級智慧型植保作業載具，具備高度整合之動力元件與高噴灑效率，專為精準大面積農業應用量身定制。 Flagship intelligent agricultural platform featuring highly integrated propulsion systems and superior spraying efficiency, tailored for precise, large-scale farming applications.
KEY ADVANTAGE: HIGH-EFFICIENCY AGRI-SPRAYING
XA6-22 規格
Takeoff Weight(最大起飛重量)45.0 kg
Flight Time(單載飛行時間)15–20 minutes
Max Cruise Speed(最大巡航速度)20 m/s
Battery Pack(智慧電池模組)46.0 V / 2X22000 mAh
Smart Charger(智能快充功率)1200 W
Dimensions Unfolded(展開尺寸)1720 x 1720 x 651 mm
Dimensions Folded(折疊尺寸)1029 x 850 x 651 mm
Curb Weight(空機重量)18.5 kg

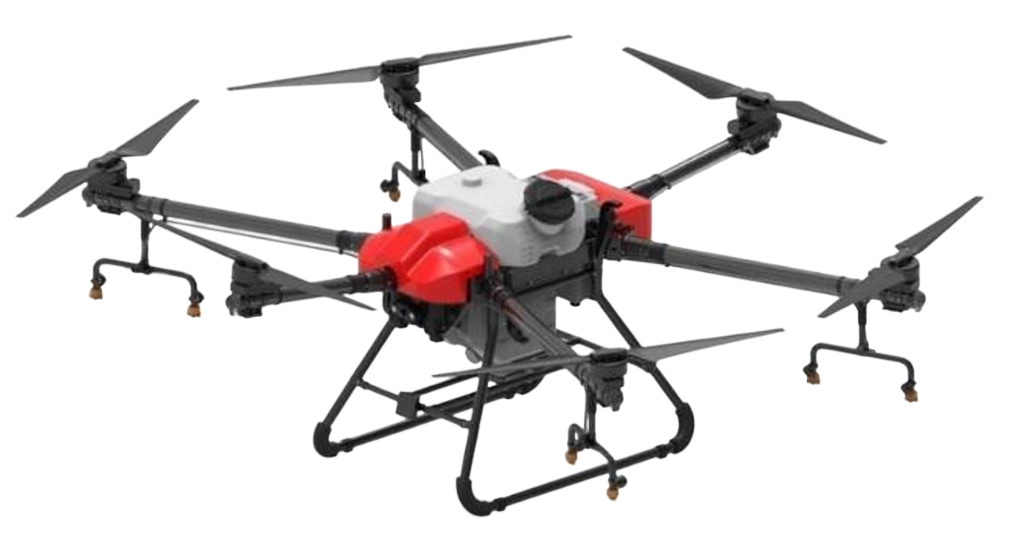

XA6-30 Drone

XA6-30

重載封閉式植保與運補飛行平台，大幅提升機身鋼性與防護性，可在多變環境下執行大容量噴灑作業。 Heavy-duty enclosed agricultural platform featuring reinforced structural rigidity for maximum load capacity in variable environments.
KEY ADVANTAGE: ENCLOSED REINFORCED CHASSIS
XA6-30 規格
Takeoff Weight(最大起飛重量)68.0 kg
Flight Time(單載飛行時間)20–30 minutes
Max Cruise Speed(最大巡航速度)10 m/s
Battery Pack(智慧電池模組)60.9 V / 2X28000 mAh
Smart Charger(智能快充功率)3000 W
Dimensions Unfolded(展開尺寸)2150 x 1915 x 905 mm
Dimensions Folded(折疊尺寸)1145 x 760 x 905 mm
Curb Weight(空機重量)(no pack) 26 kg / (with pack) 38 kg

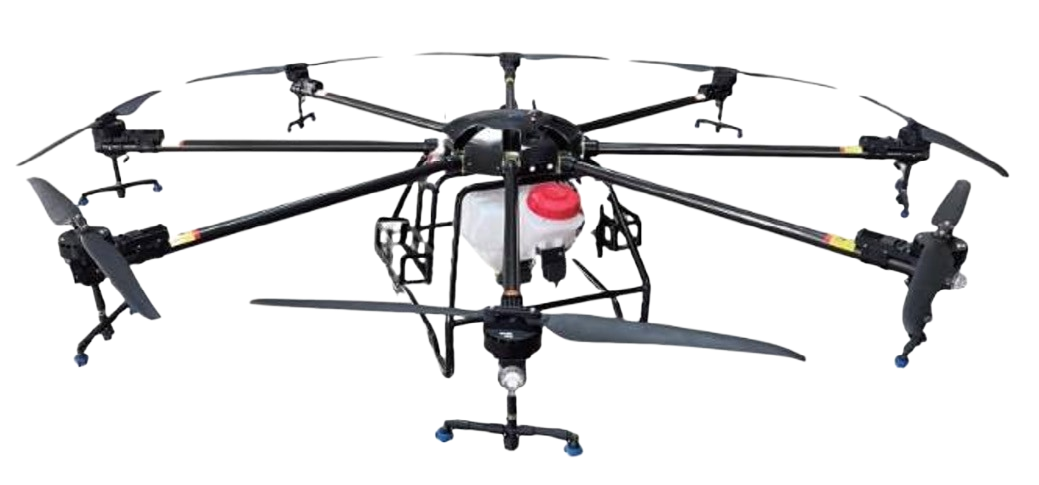

XA8-70 Drone

XA8-70

全能型多任務八軸載具，在超高剛性骨架結構下實現優秀的功重比，提供極佳的全天候作業環境相容性。 Versatile multi-mission 8-axis carrier delivering an exceptional power-to-weight ratio for high all-weather adaptability.
KEY ADVANTAGE: HIGH ALL-WEATHER ADAPTABILITY
XA8-70 規格
Takeoff Weight(最大起飛重量)149.0 kg
Flight Time(單載飛行時間)20–30 minutes
Max Cruise Speed(最大巡航速度)12 m/s
Battery Pack(智慧電池模組)60.9 V / 2X42000 mAh
Smart Charger(智能快充功率)3000 W
Dimensions Unfolded(展開尺寸)3930 x 3930 x 970 mm
Dimensions Folded(折疊尺寸)1000 x 900 x 2100 mm
Curb Weight(空機重量)(no pack) 51 kg / (with pack) 77 kg

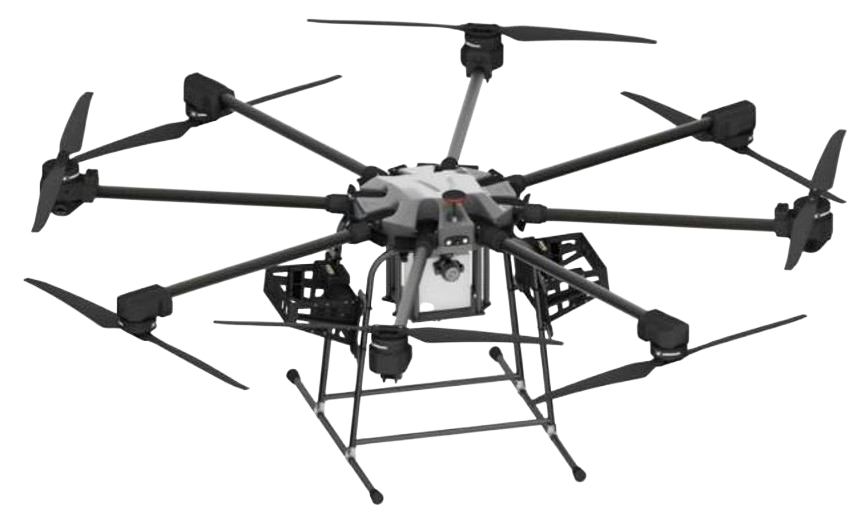

XA8-150 Drone

XA8-150

旗艦級超重載八軸飛行平台，提供無可匹敵的馱重與運載性能，專為重工業運補與特大容量噴灑設計。 Ultimate 8-axis heavy-lift flight platform engineered for maximum payloads and heavy industrial transport.
KEY ADVANTAGE: MAXIMUM LIFTABLE PAYLOAD
XA8-150 規格
Takeoff Weight(最大起飛重量)260.0 kg
Flight Time(單載飛行時間)20–50 minutes
Max Cruise Speed(最大巡航速度)20 m/s
Battery Pack(智慧電池模組)78.3 V / 4X40000 mAh
Smart Charger(智能快充功率)3000 W
Dimensions Unfolded(展開尺寸)4605 x 4605 x 990 mm
Dimensions Folded(折疊尺寸)1010 x 870 x 2320 mm
Curb Weight(空機重量)(no pack) 63 kg / (with pack) 108 kg

全系列規格

項目 / 型號 XA6-22 XA6-30 XA8-70 XA8-150
Dimensions (unfolded) 1720 x 1720 x 651 mm 2150 x 1915 x 905 mm 3930 x 3930 x 970 mm 4605 x 4605 x 990 mm
Dimensions (folded) 1029 x 850 x 651 mm 1145 x 760 x 905 mm 1000 x 900 x 2100 mm 1010 x 870 x 2320 mm
MTOW (Max Takeoff Weight) 45.0 kg 68.0 kg 149.0 kg 260.0 kg
Curb Weight 18.5 kg (no pack) 26 kg / (with pack) 38 kg (no pack) 51 kg / (with pack) 77 kg (no pack) 63 kg / (with pack) 108 kg
Airtime 15-20 min 20-30 min 20-30 min 20-50 min
Max. Cruise Speed 20 m/s 10 m/s 12 m/s 20 m/s
Battery Pack 46.0 V / 2X22000 mAh 60.9 V / 2X28000 mAh 60.9 V / 2X42000 mAh 78.3 V / 4X40000 mAh
Charger Power 1200 W 3000 W 3000 W 3000 W
